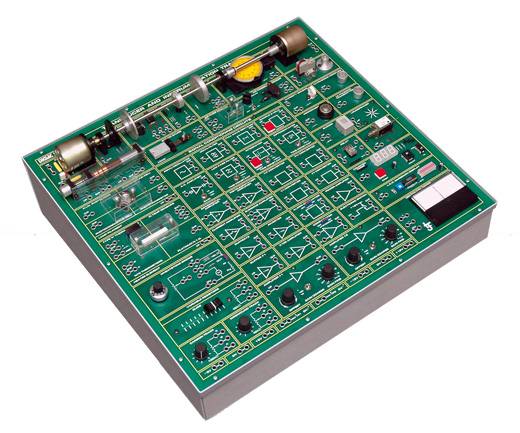

1. Transducer & instrumentation Trainer

    * Carbon track, wirewound andprecision rotary potentiometers.
    * Slide potentiometer.
    * Linear variable differentialtransformer
    * Linear variable capacitor.

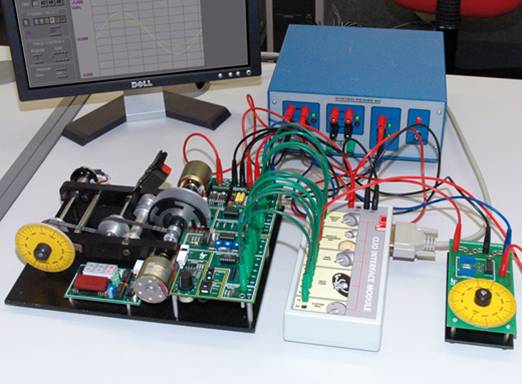

2. Analog & Digital Motor Control

    * DC Motor Control Module
    * Command Potentiometer
    * Windows-based Virtual Control Laboratory software
    * 4 mm Lead Set
    * Power Supply

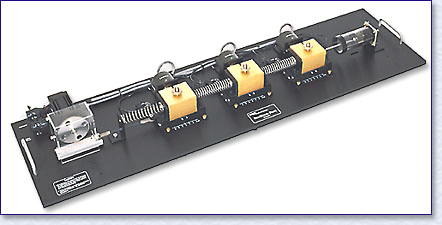

3. Rectilinear Plant

    * Number of Unique Configurations:Twelve. Twenty with optional 3rd mass carriage.
    * Mass Adjustment:5:1
    * Spring Adjustment:4:1
    * Damping Adjustment:50:1
    * Dynamic Frequencies:Poles & zeros adjustable in range from 1.5 to 7 Hz








4. Oscilloscope

    * Oscilloscope 100 MHz 4 channel
    * Oscilloscope 60 MHz 2 channel











5. Function Generator

    * Function Generator
    * Power Supply: CAT II 100 to 240 V @50/60 Hz (-5%, +10%), 100 to 120 V @ (± 10%)

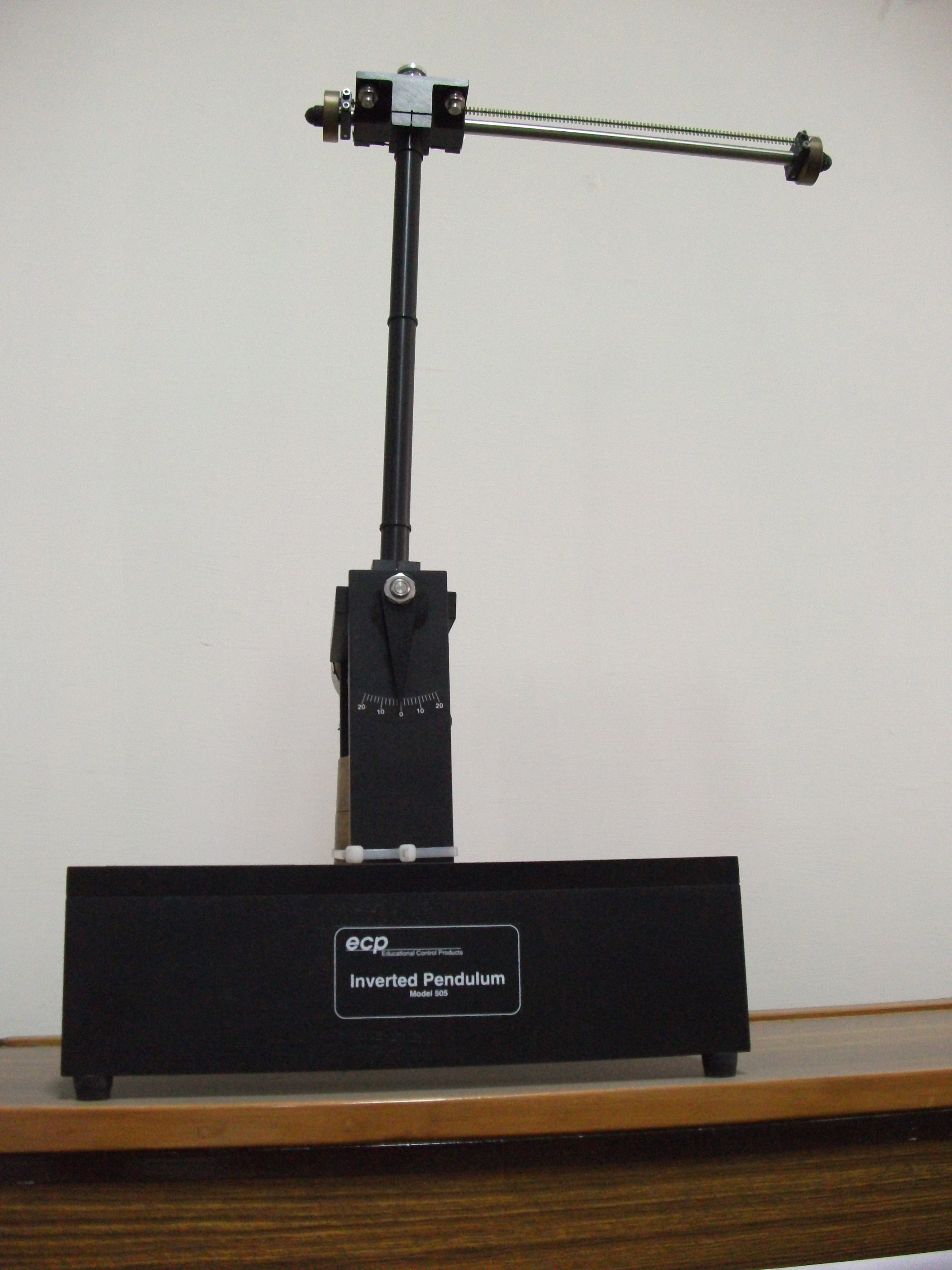

6.Inverted Pendulum

    * Dynamic Frequencies: Poles to adjustable 0.4 to 1.2 Hz.
    * Actuator: 0.6 N-m Fe-Co brush type.
    * Servo Amplifiers: 5 KHZ current loop bandwidth.
    * Size: 30*30*56 cm. (12*12*22 in).









7. Automation Studio

    * Hydraulic circuit design and hydraulic simulation
    * Pneumatic circuit design and pneumatic simulation
    * Electro-hydraulic and electro-pneumatic circuit design and simulation
