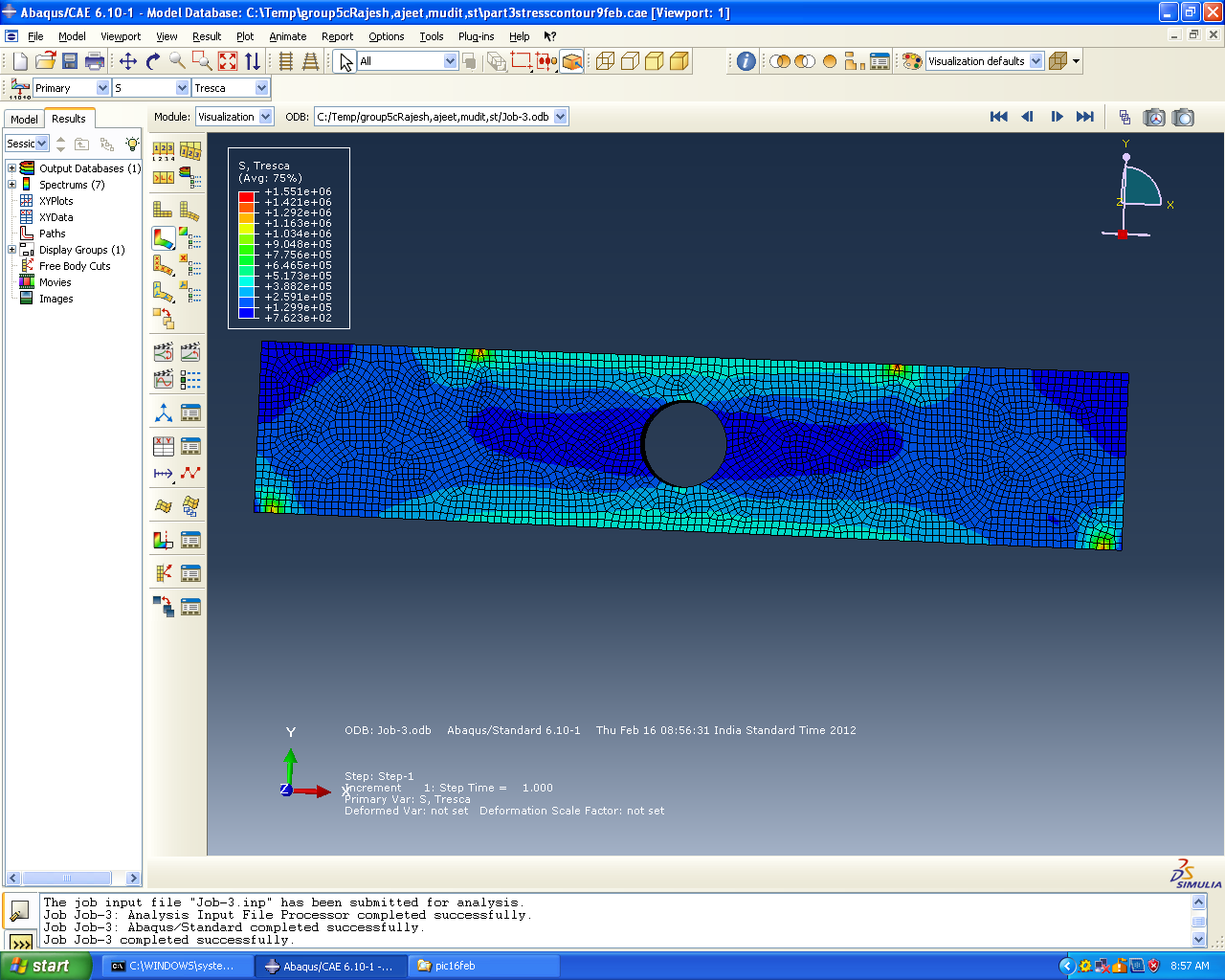

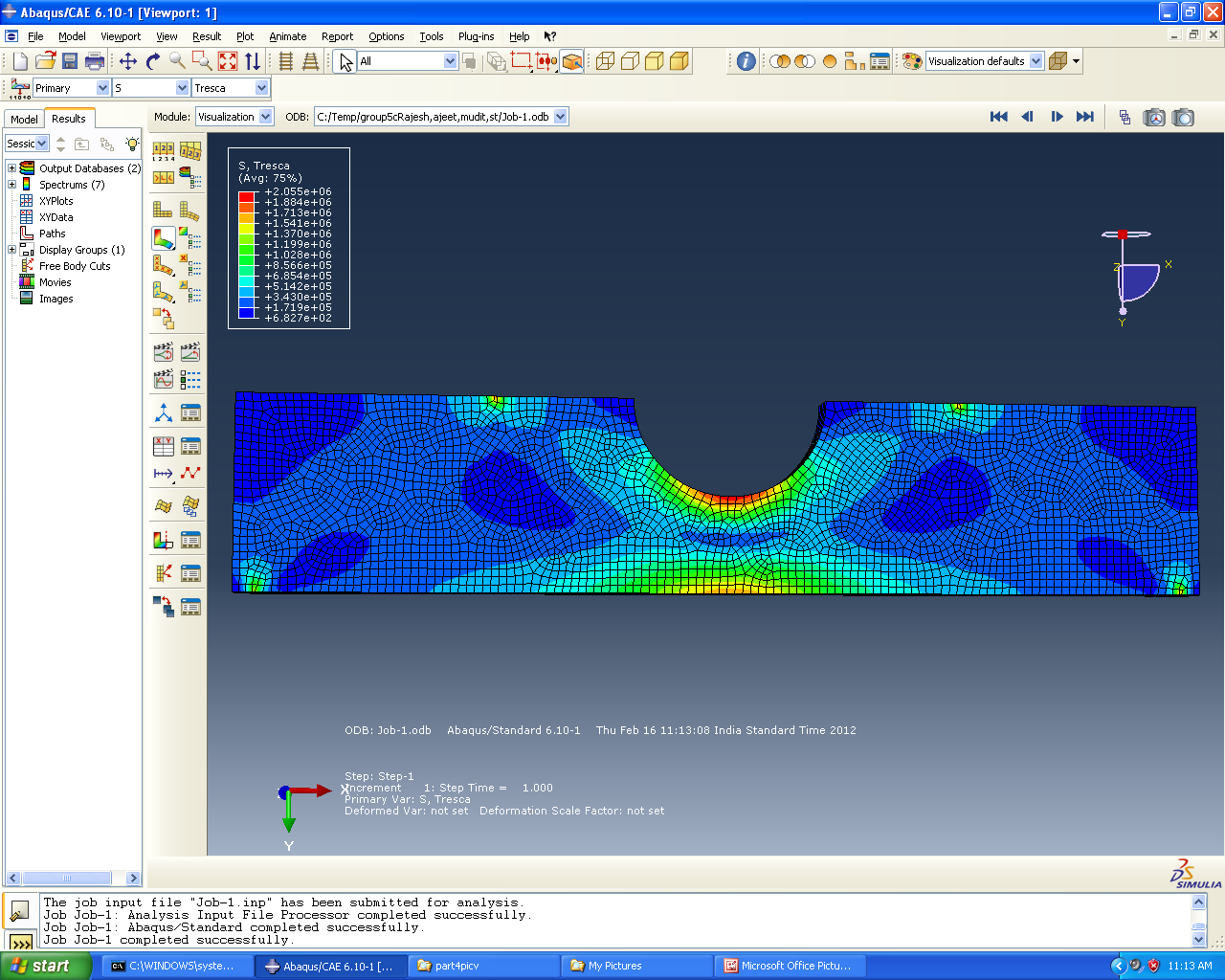

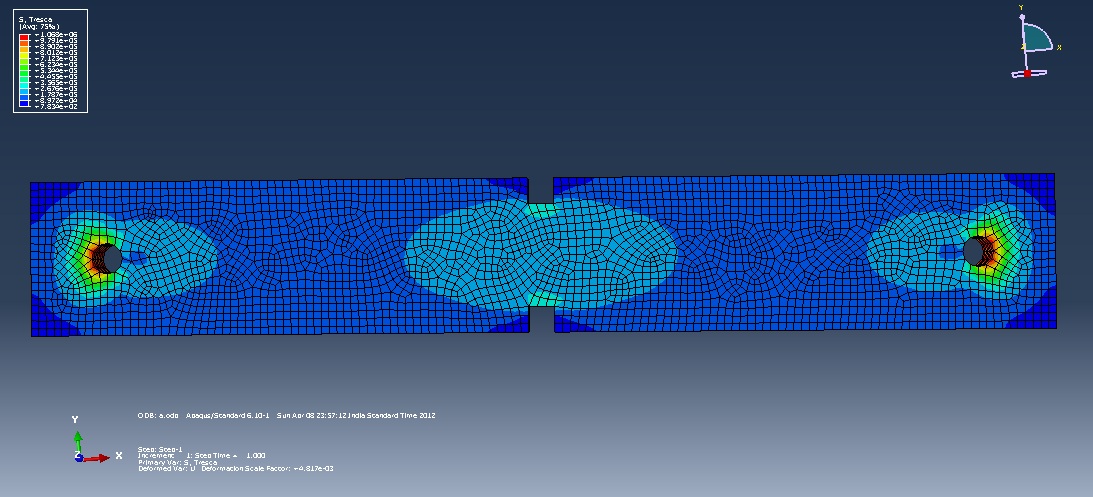

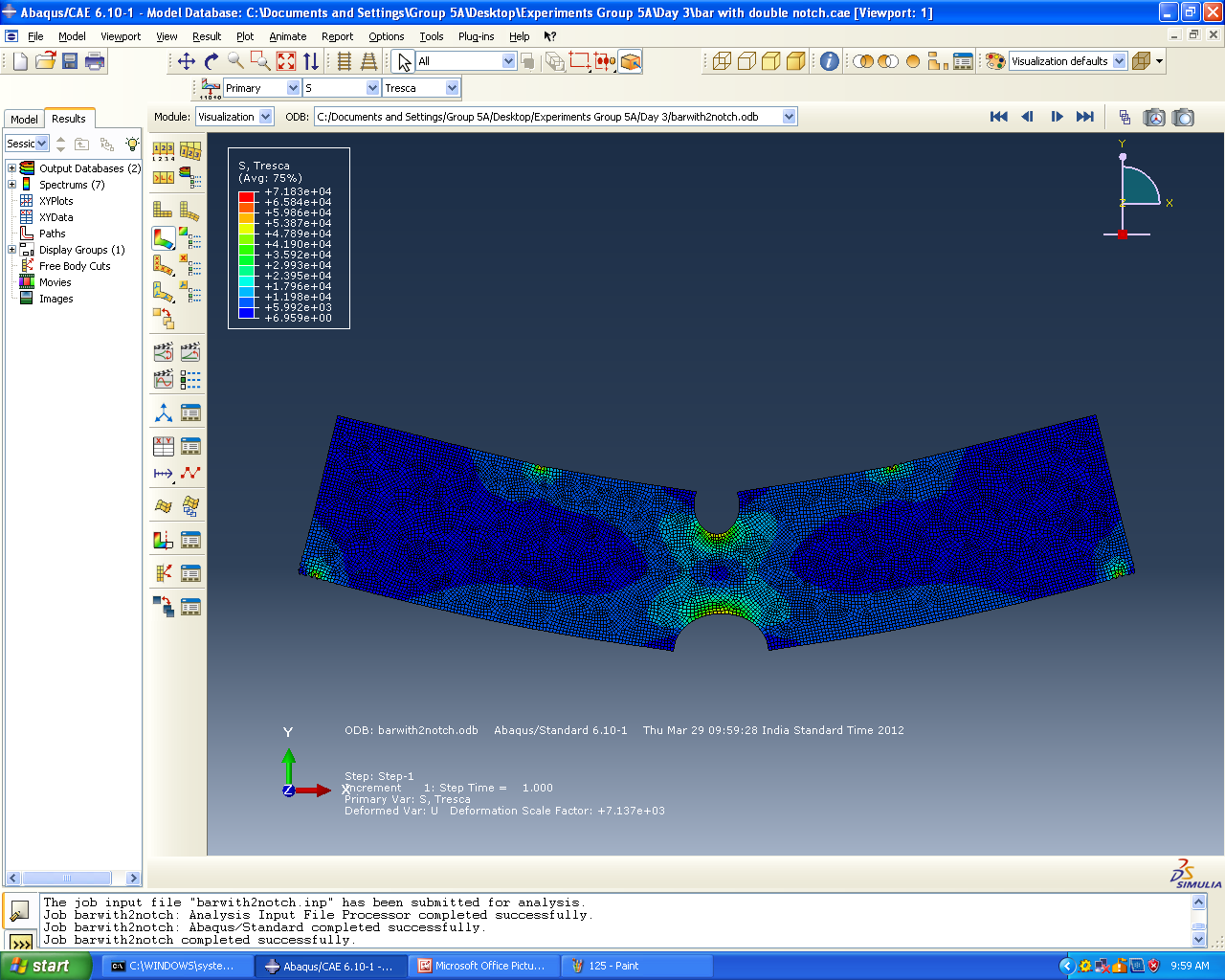

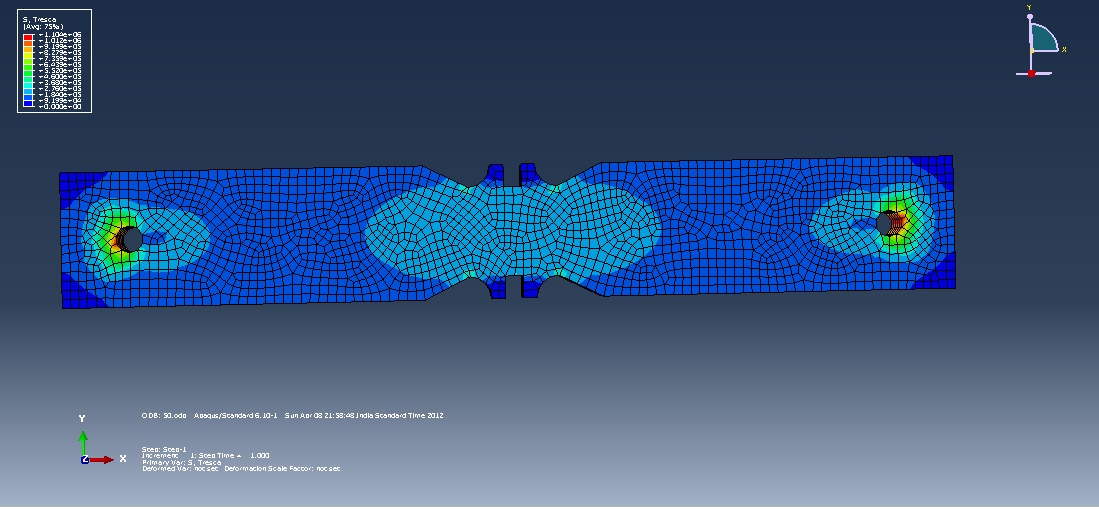

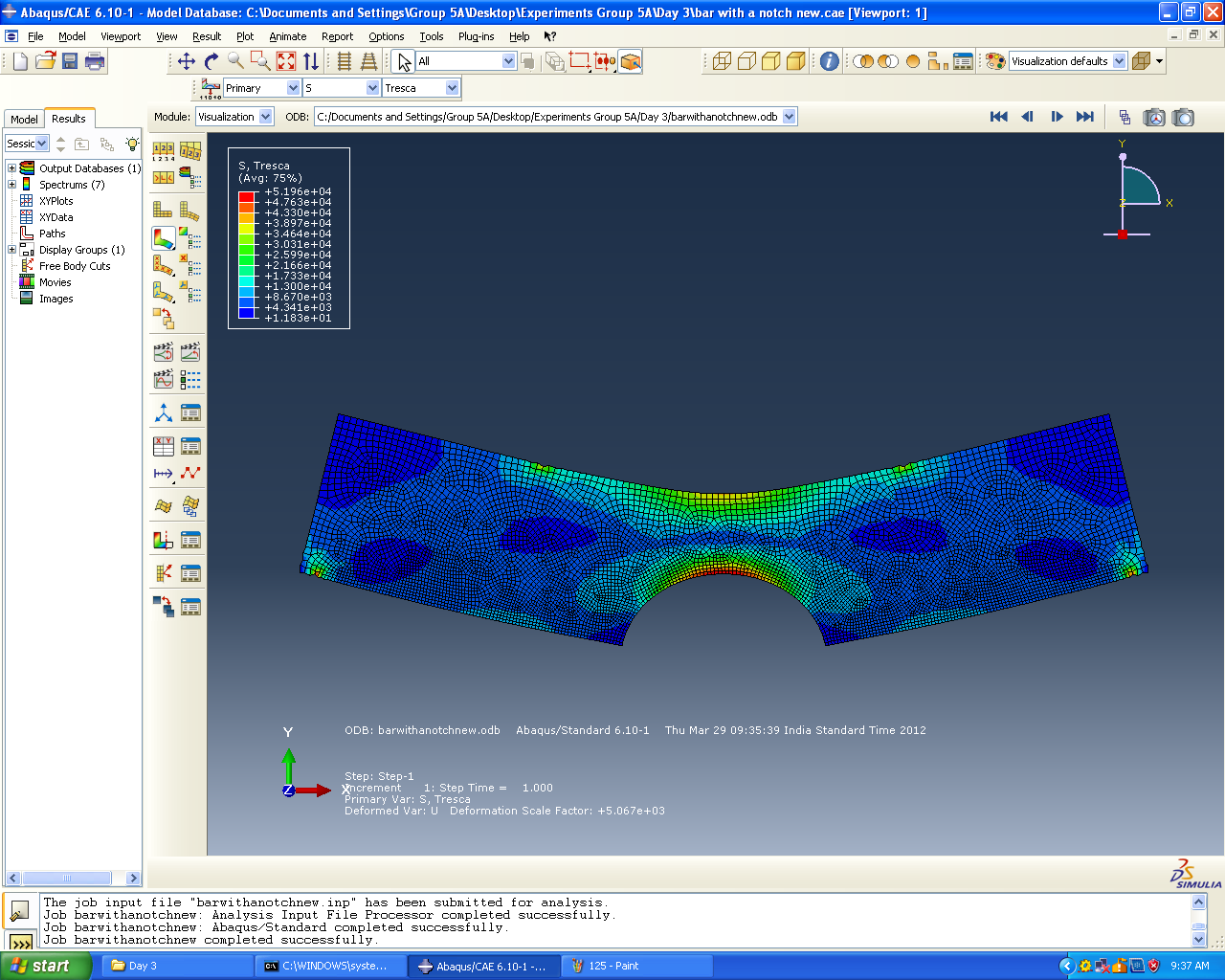

1. Abaqus Simulation Project







To simulate tensile and compressive loading conditions on different structures and verify results using photo elastic experiments.





2. Photoelastic effect







Study the stress distribution using photo-elastic effect

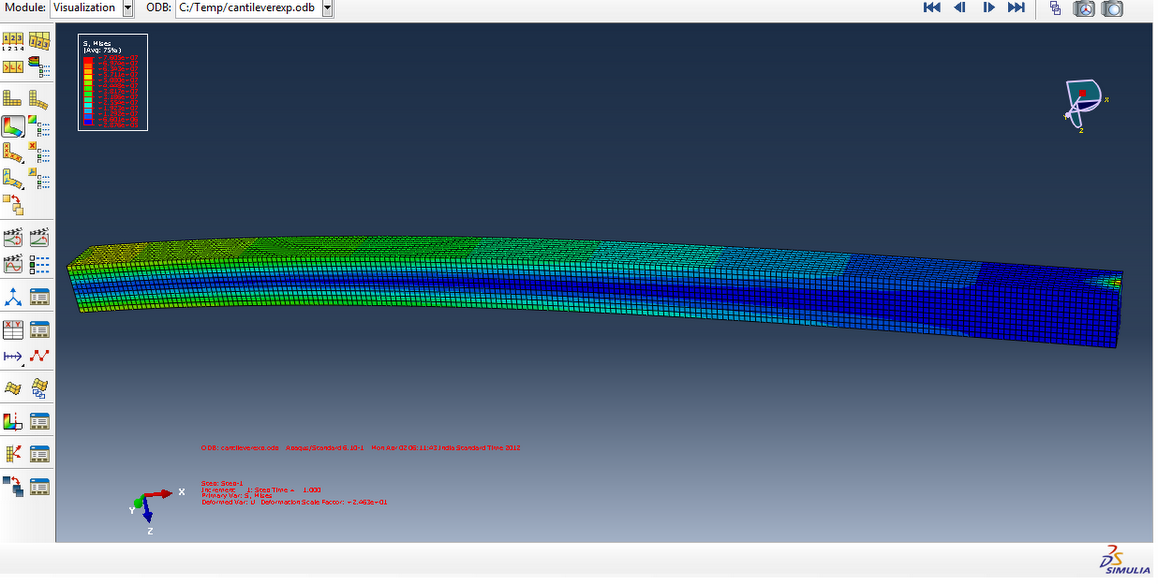

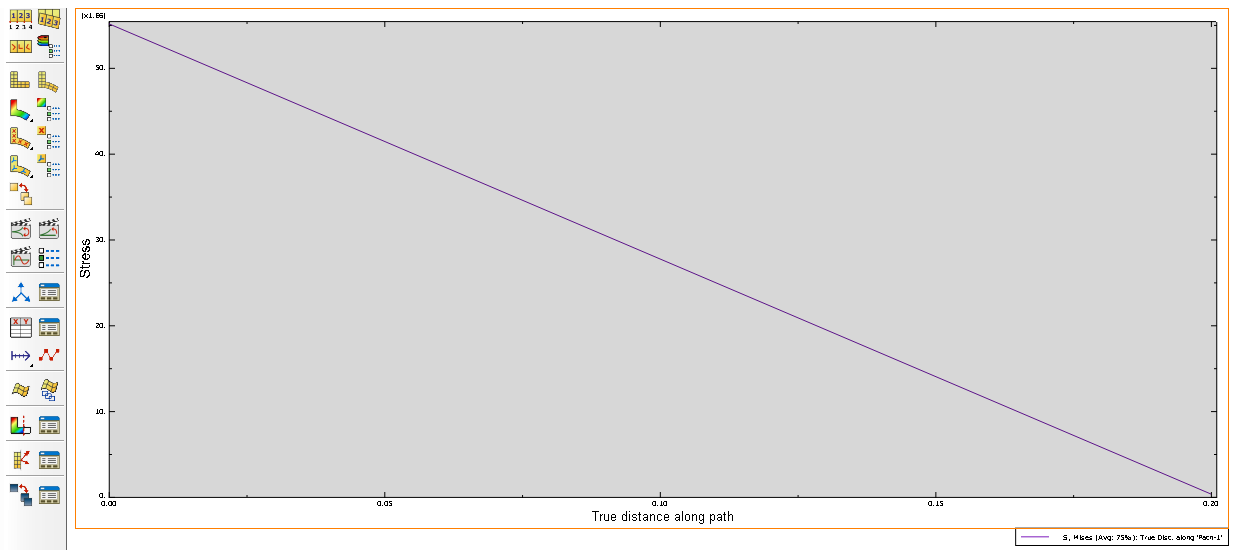

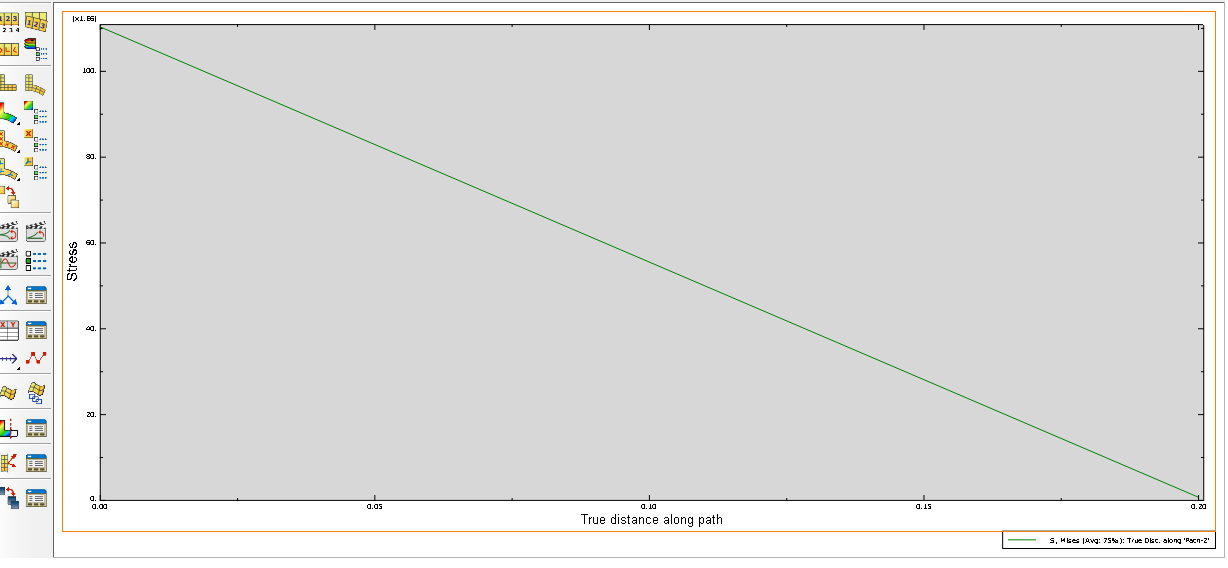

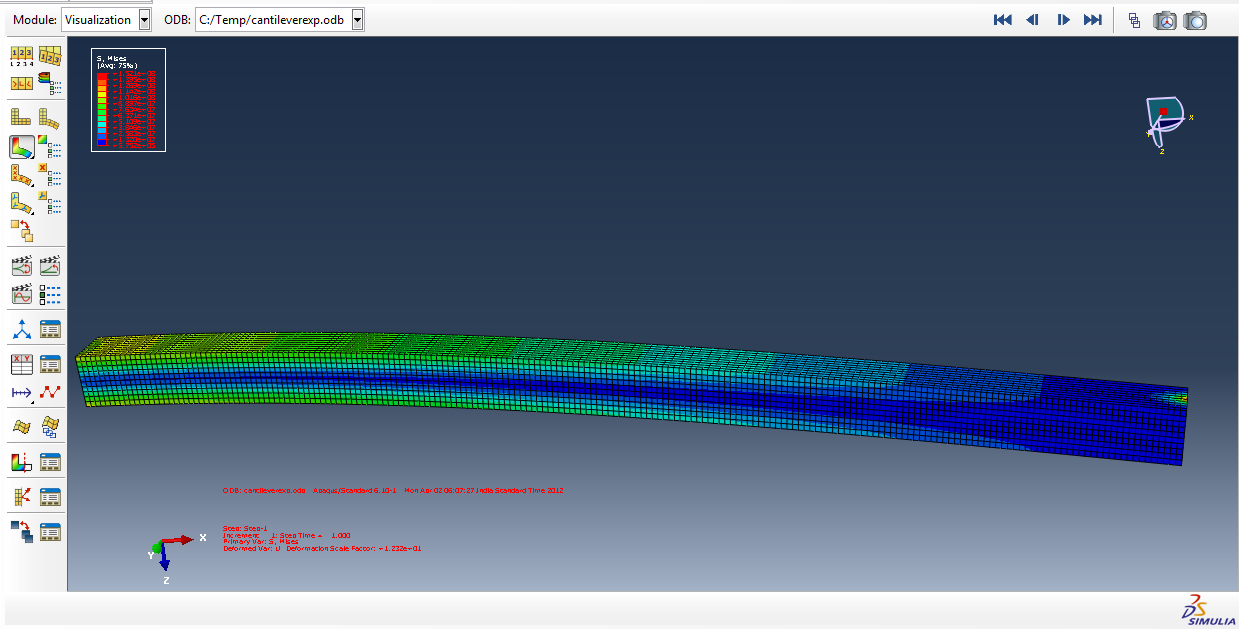

3. Stress distribution for a cantilever beam having point at its free end







A cantilever is a beam anchored at only one end. The beam carries the load to the support where it is resisted by moment and shear stress. Cantilever construction allows for overhanging structures without external bracing. Cantilevers can also be constructed with trusses or slabs. When a concentrated load is applied at the end of a cantilever, cantilever beam bends and the upper half of the beam is subjected to tension and the lower half is subjected to compression.

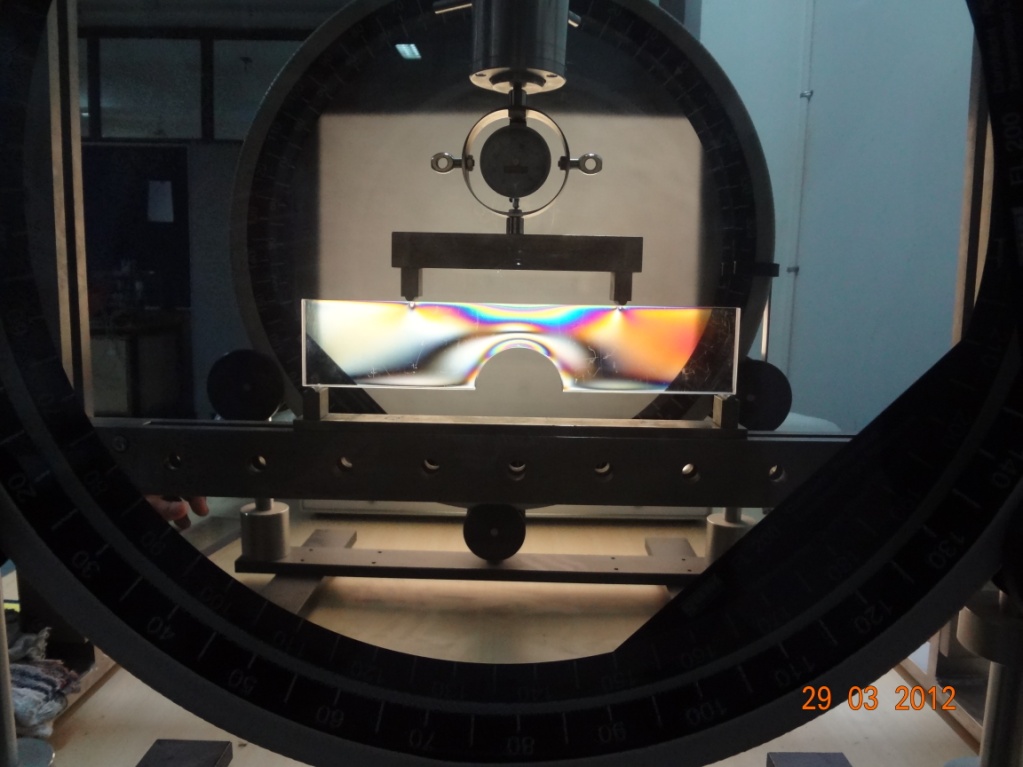

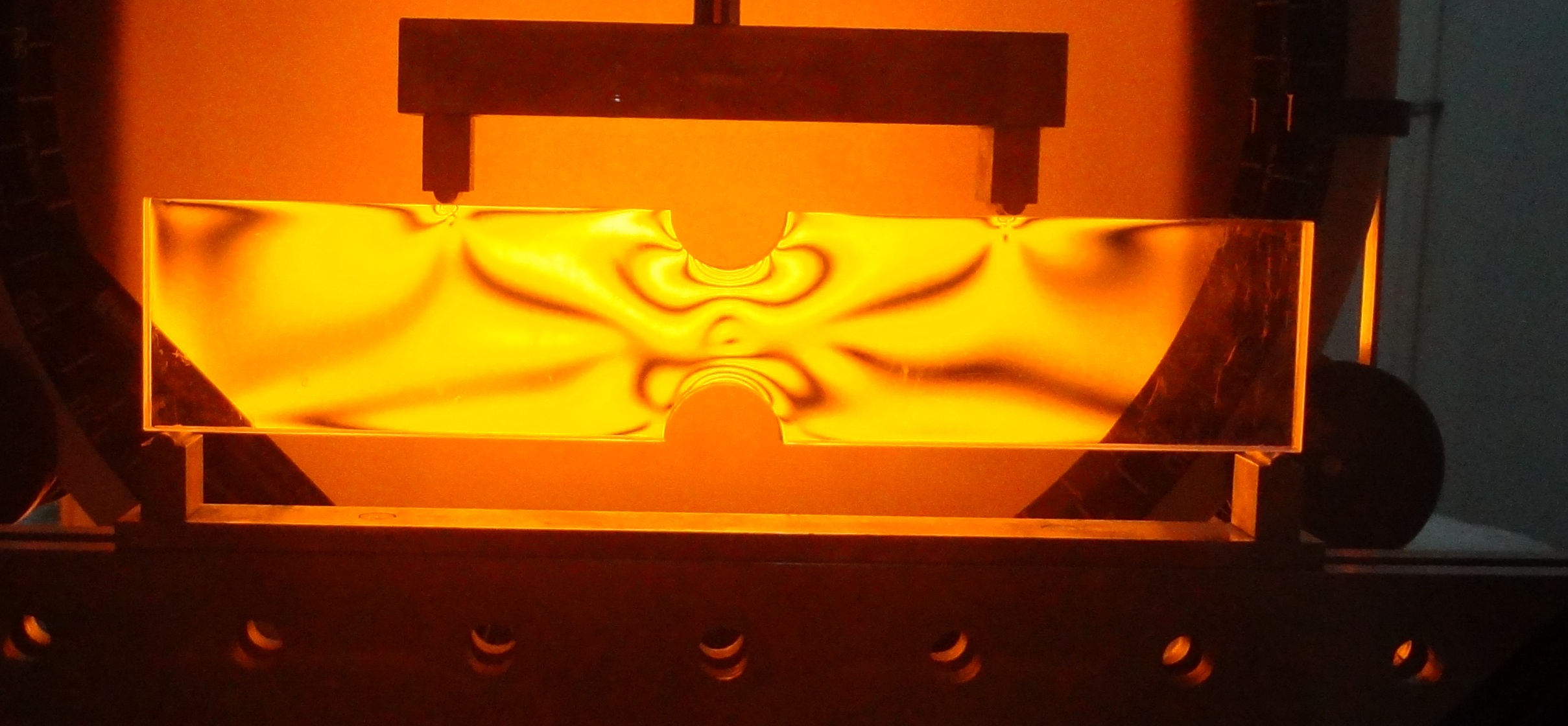

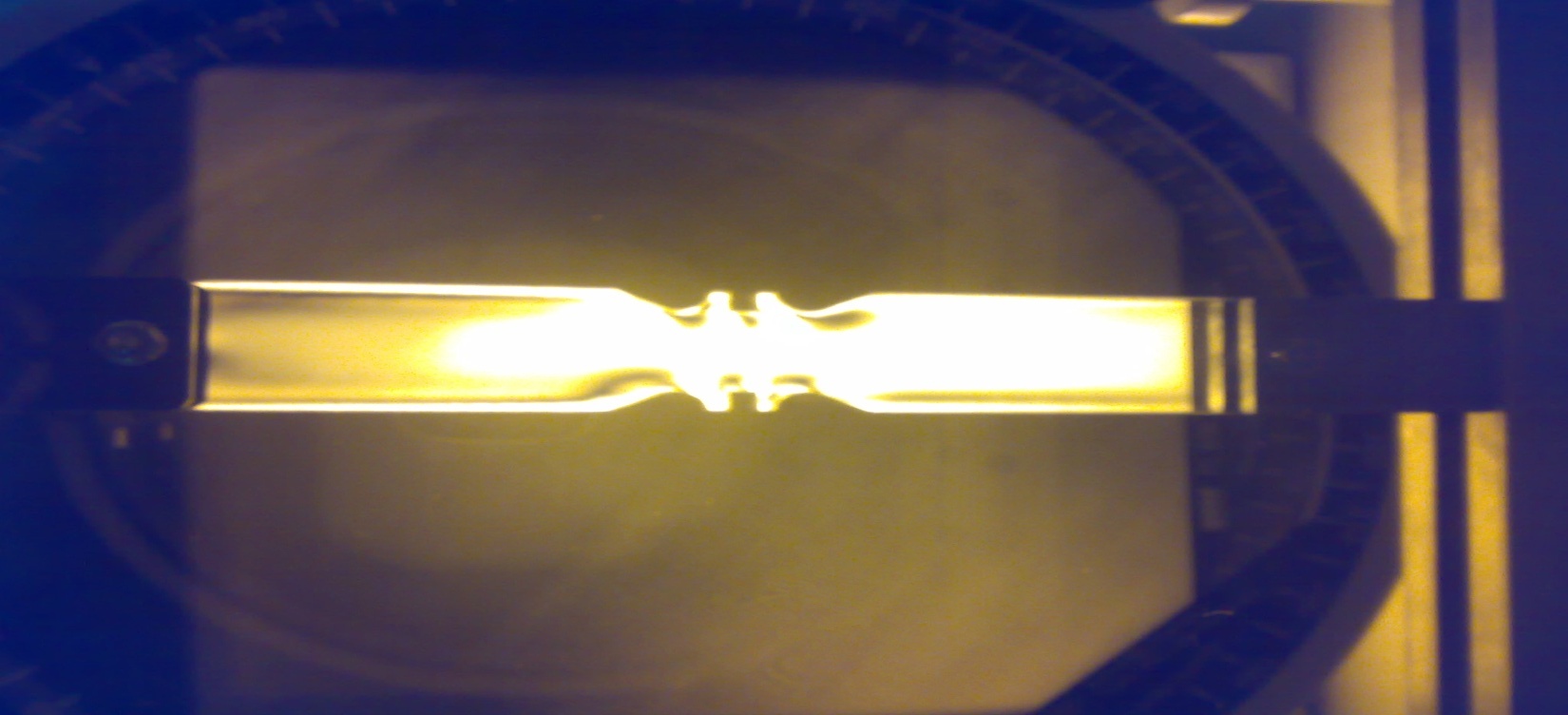

4. Photo-elastic experiments with Transmitted-Light Polariscope with models

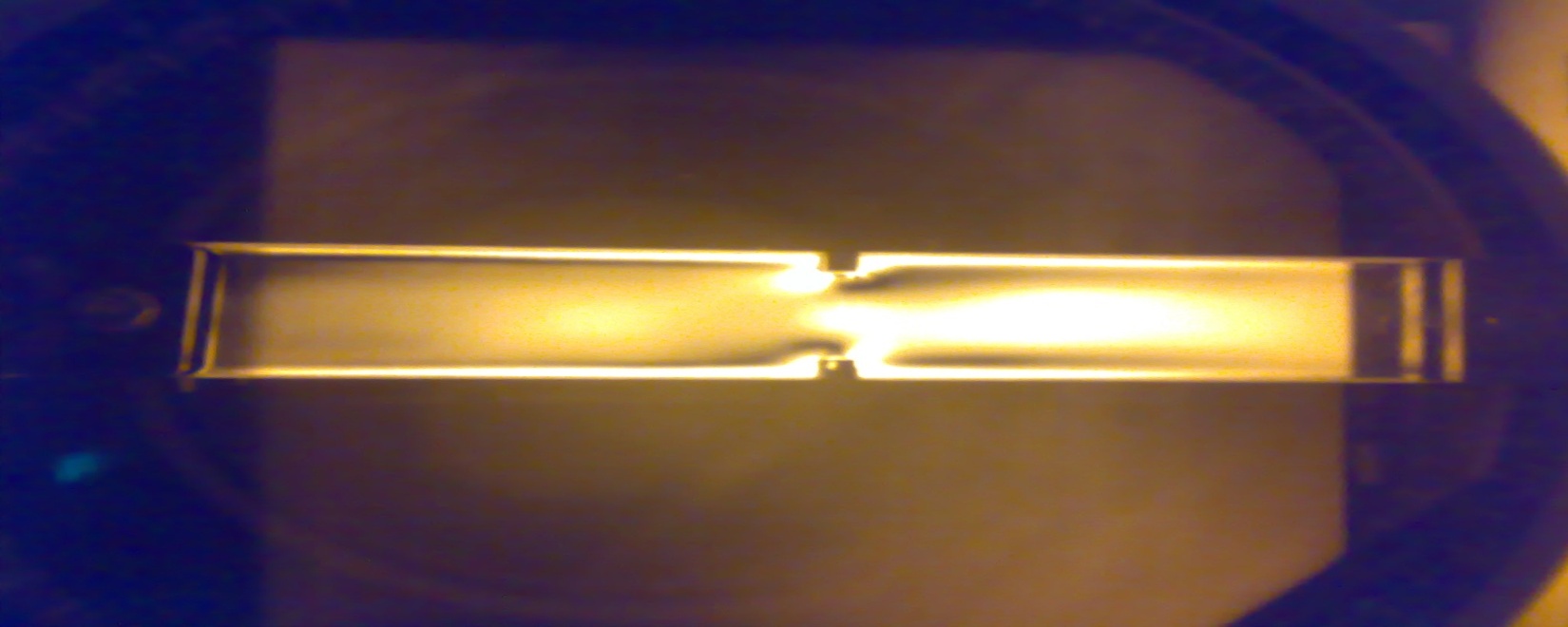

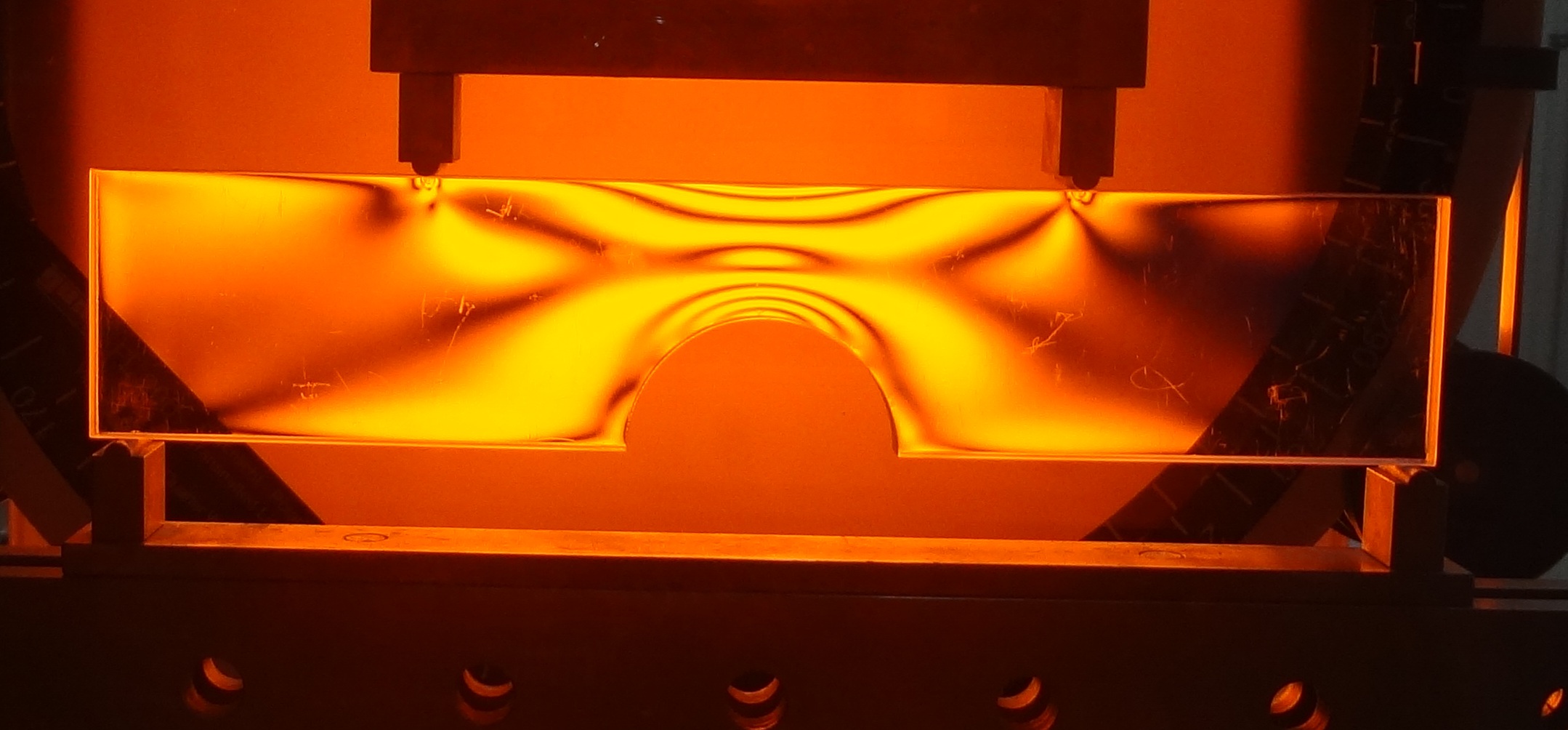

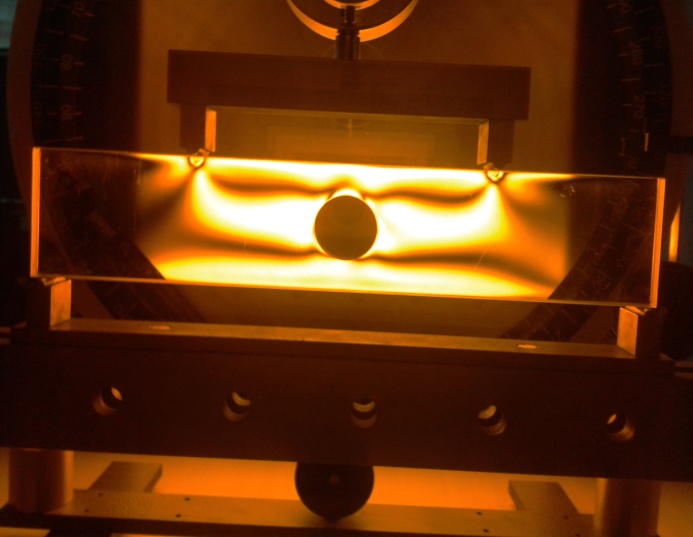

Obtaining stress contours from photo-elastic experiments (for monochromatic and white light) at fixed polarizer and analyzer positions for tensile loads of 25, 50, 75, and 100N on different on different geometries (as shown in figure f, g, h).
Young’s Modulus = 220 GPa
Poisson’s ratio = 0.3
